挖掘机链轮系列
性能参数

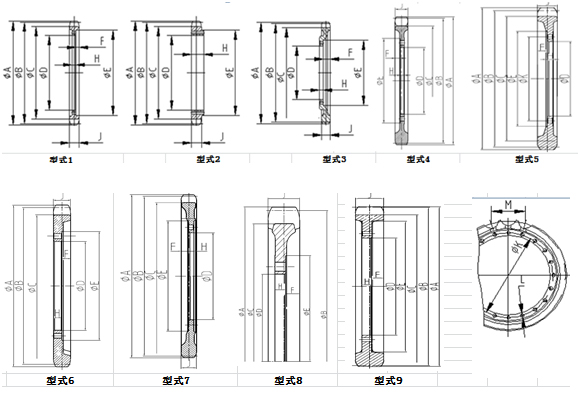

| 项目 | A | B | C | D | E | F | H | J | K | L | M | 重量 | 齿数 | 型式 | 适用吨位 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 图号 | |||||||||||||||
| 8101-GH-AS001 | 385 | 377 | 344 | 210 | 288 | 8 | 12 | 28 | 232 | 12-φ13 | 101.6 | 8.6 | 23 | 1 | 3.5T |
| 8101-GH-BS001 | 385 | 377 | 344 | 230 | 288 | 8 | 12 | 28 | 262 | 12-φ15 | 101.6 | 8 | 23 | 1 | 3.5T |
| 8101-GH-CS001 | 385 | 377 | 344 | 204 | 288 | 8 | 12 | 28 | 232 | 12-φ13 | 101.6 | 8.4 | 23 | 1 | 3.5T |
| 8101-GH-DS001 | 385 | 377 | 344 | 200.2 | 288 | 8 | 12 | 28 | 241.3 | 9-φ13 | 101.6 | 8.2 | 23 | 1 | 3.5T |
| 8125-GA-BS001 | 564 | 542 | 510 | 440 | 10 | 10 | 45 | 125 | 27 | 3 | |||||
| 8135-GA-AS001 | 431 | 415.8 | 379.6 | 230 | 290 | 10 | 16 | 34 | 262 | 9-φ15.5 | 135 | 19.1 | 19 | 1 | |
| 8135-GA-BS001 | 431 | 415.8 | 379.6 | 230 | 291 | 19 | 15 | 34 | 262 | 12-φ15.5 | 135 | 16.34 | 19 | 1 | |
| 8135-GA-CS001 | 431 | 415.8 | 379.6 | 250 | 311 | 19 | 15 | 34 | 282 | 12-φ15.5 | 135 | 14.46 | 19 | 1 | |
| 8135-GB-AS001 | 476 | 458 | 418.5 | 230 | 318 | 21.25 | 12 | 42.5 | 262 | 12-φ15 | 135 | 20.82 | 21 | 1 | 5.5T |
| 8135-GB-BS001 | 423 | 415.8 | 380 | 230 | 302 | 21.25 | 15.5 | 42.5 | 262 | 12-φ15 | 135 | 20.2 | 19 | 1 | |
| 8135-GC-AS001 | 423.2 | 415.8 | 376.3 | 230 | 300 | 16 | 14 | 32 | 262 | 12-φ15 | 135 | 12.9 | 19 | 1 | |
| 8135-GL-AS001 | 435.8 | 415.8 | 380.4 | 230 | 292 | 22 | 14 | 38 | 262 | 12-φ15 | 135 | 17.1 | 19 | 1 | |
| 8135-GL-BS001 | 468 | 458 | 422.6 | 250 | 318 | 17 | 17 | 44 | 282 | 12-φ16 | 135 | 21 | 21 | 1 | |
| 8135-GL-CS001 | 468 | 458 | 422.6 | 265 | 330 | 17 | 17 | 44 | 300 | 12-φ16 | 135 | 20 | 21 | 1 | |
| 8135-GM-ES001 | 441 | 415.77 | 379 | 230 | 292 | 12.5 | 14.5 | 45 | 262 | 12-φ15 | 135 | 16.1 | 19 | 4 | |
| 8135-GM-FS001 | 441 | 415.77 | 379 | 230 | 292 | 12.5 | 14.5 | 45 | 262 | 12-φ15 | 135 | 16.1 | 19 | 4 | |
| 8135-MD-AS001 | 467.77 | 458.01 | 416.3 | 230 | 310 | 22.5 | 20 | 42.5 | 262 | 12-φ16 | 135 | 24 | 21 | 1 | 5T |
| 8135-MD-CS001 | 476 | 458 | 418.6 | 292 | 368 | 21.3 | 12 | 42.5 | 332 | 12-φ17.5 | 135 | 21 | 1 | 6T | |
| 8135-MD-DS001A | 476 | 458 | 418.6 | 292 | 362 | 20 | 12 | 40 | 332 | 12-φ16.5 | 135 | 15 | 21 | 1 | 6T |
| 8135-MD-DS001 | 476 | 458 | 418.6 | 230 | 318 | 20 | 12 | 40 | 262 | 12-φ16 | 135 | 20.8 | 21 | 1 | 6T |
| 8135-MD-ES001 | 476 | 458 | 418.6 | 265 | 336 | 13 | 14 | 40 | 300 | 12-φ16 | 135 | 18 | 21 | 1 | 6T |
| 8135-MD-FS001 | 431 | 415.8 | 374 | 230 | 290 | 7 | 29 | 40 | 262 | 12-φ15 | 135 | 20.88 | 19 | 1 | 7T |
| 8135-MD-GS001 | 431 | 415.8 | 374 | 230 | 290 | 7 | 29 | 40 | 262 | 9-φ15 | 135 | 22.87 | 19 | 1 | 7T |
| 8135-MD-GS001A | 431 | 415.8 | 374 | 265 | 350 | 7 | 29 | 40 | 300 | 12-φ16 | 135 | 18.5 | 19 | 1 | 6T |
| 8135-MD-HS001 | 476 | 458 | 418.6 | 250 | 336 | 14.25 | 14 | 40 | 282 | 12-φ16 | 135 | 24.5 | 21 | 1 | 6T |
| 8135-MD-JS001 | 476 | 458 | 418.6 | 250 | 318 | 21.25 | 15 | 42.5 | 282 | 12-φ16 | 135 | 20.1 | 21 | 5 | 6T |
| 8135-MD-KS001 | 431 | 415.8 | 374 | 230 | 290 | 7 | 29 | 40 | 262 | 9-φ15 | 135 | 22.87 | 19 | 1 | |
| 8135-MD-LS001 | 476 | 458 | 418.6 | 230 | 382 | 20 | 12 | 40 | 262 | 12-φ16 | 135 | 18 | 21 | 5 | |
| 8135-MD-MS001 | 468 | 458 | 416.6 | 265 | 300 | 5.5 | 18 | 32 | 300 | 12-φ16 | 135 | 14.6 | 21 | 3 | |
| 8135-MD-NS001 | 476 | 458 | 418.6 | 292 | 388 | 20 | 12 | 40 | 332 | 12-φ16 | 135 | 18 | 21 | 4 | |
| 8135-MD-PS001 | 596 | 585.39 | 543.66 | 324 | 410 | 12 | 16.5 | 40 | 364 | 15-φ17.5 | 135 | 30.7 | 27 | 1 | |
| 8135-MD-QS001 | 596 | 585.39 | 543.66 | 230 | 316 | 11.5 | 16.5 | 40 | 260 | 16-φ17.5 | 135 | 36.11 | 27 | 1 | |
| 8140-GB-AS001 | 495 | 475 | 438 | 265 | 340 | 13 | 20 | 46 | 300 | 12-φ15 | 140 | 25.33 | 21 | 1 | 8.5T |
| 8140-GB-BS001 | 485 | 475 | 434.3 | 210 | 285 | 23 | 20 | 46 | 241.3 | 9-φ18 | 140 | 21 | 1 | 8.5T | |
| 8140-GB-CS001 | 485.1 | 475 | 434.3 | 292 | 365 | 26 | 18 | 46 | 332 | 12-φ17 | 140 | 21.5 | 21 | 1 | 8.5T |
| 8140-GB-GS001 | 531.3 | 518.9 | 478.3 | 265 | 340 | 13 | 20 | 46 | 300 | 12-φ15.5 | 140 | 37.6 | 23 | 1 | |
| 8154-MB-AS001 | 610 | 595 | 549.6 | 324 | 400 | 4 | 46 | 42 | 364 | 15-φ17.5 | 154 | 56.4 | 24 | 2 | 6T |
| 8154-MB-BS001 | 610 | 595.4 | 549.7 | 324 | 410 | 10 | 52 | 42 | 364 | 15-φ17.5 | 154.1 | 53.7 | 24 | 2 | 6T |
| 8154-MB-CS001 | 535 | 522.5 | 476.5 | 265 | 332 | 11 | 18 | 40 | 300 | 12-φ16 | 154.1 | 26.4 | 21 | 1 | 8.5T |
| 8154-MB-CS001A | 535 | 522.5 | 476.5 | 270 | 337 | 11 | 18 | 40 | 300 | 16-φ18 | 154.1 | 28 | 21 | 1 | |
| 8154-MB-DS001 | 635.25 | 619.25 | 573.5 | 280 | 380 | 40 | 30 | 42 | 330 | 18-φ18 | 154 | 25 | 3 | ||
| 8154-MB-ES001 | 535 | 522.5 | 476.5 | 280 | 335 | 11 | 18 | 40 | 305 | 16-φ18 | 154.1 | 25 | 21 | 1 | |
| 8154-MB-FS001 | 535 | 522.5 | 476.5 | 324 | 398 | 11 | 18 | 40 | 364 | 15-φ17.5 | 154.1 | 28.9 | 21 | 1 | |
| 8154-MB-GS001 | 535 | 522.5 | 476.5 | 230 | 294 | 11 | 18 | 40 | 260 | 16-φ17.5 | 154.1 | 31.6 | 21 | 1 | |
| 8154-MB-HS001 | 535 | 522.5 | 476.5 | 292 | 364 | 11 | 18 | 40 | 332 | 12-φ18 | 154.1 | 25 | 21 | 1 | |
| 8154-MB-JS001 | 610 | 595.01 | 549.6 | 324 | 400 | 4 | 46 | 42 | 364 | 15-φ17.5 | 154 | 50.3 | 24 | 2 | |
| 8154-MB-KS001 | 535 | 522.5 | 476.5 | 250 | 316 | 11 | 18 | 40 | 282 | 12-φ16 | 154.1 | 25 | 21 | 1 | |
| 8154-MC-AS001 | 535 | 522.5 | 481.2 | 230 | 336 | 12 | 14 | 38 | 260 | 16-φ17.5 | 154 | 23 | 21 | 1 | 6T |
| 8154-MC-CS001 | 535 | 522.5 | 481.2 | 265 | 336 | 12 | 14 | 38 | 300 | 12-φ16 | 154 | 22.5 | 21 | 1 | 6T |
| 8154-MC-FS001 | 535 | 522.5 | 481.2 | 230 | 336 | 11 | 16 | 38 | 260 | 16-φ17.5 | 154 | 33 | 21 | 1 | |
| 8154-MC-GS001 | 535 | 522.5 | 481.2 | 230 | 336 | 12 | 14 | 38 | 260 | 16-φ16 | 154 | 23.9 | 21 | 1 | |
| 8154-MK-AS001 | 483.7 | 474.285 | 432 | 265 | 336 | 12 | 14 | 38 | 300 | 12-φ15 | 154 | 19.087 | 19 | 1 | |
| 8160-GA-AS001 | 501.6 | 492.76 | 447.36 | 324 | 398 | 20 | 15 | 55 | 364 | 15-φ17.5 | 160 | 22.8 | 19 | 1 | |
| 8160-GA-BS001 | 607.2 | 593.04 | 547.6 | 324 | 410 | 20 | 15 | 55 | 364 | 15-φ17.5 | 160 | 36.5 | 23 | 1 | |
| 8160-GA-DS001 | 618 | 593.04 | 548 | 362 | 440 | 27.5 | 22 | 55 | 402 | 21-φ17.5 | 160 | 35 | 23 | 5 | |
| 8160-GA-ES001 | 618 | 593.04 | 548 | 280 | 350 | 27.5 | 22 | 55 | 305 | 20-φ17.5 | 160 | 29.7 | 23 | 5 | |
| 8171-GF-AS001 | 600.5 | 581.7 | 527 | 324 | 410 | 21 | 18 | 60 | 364 | 15-φ17 | 171.45 | 41.5 | 21 | 1 | 13.5T |
| 8171-GF-BS001 | 600.5 | 581.7 | 527 | 362 | 439 | 30 | 29 | 60 | 402 | 24-φ17 | 171.45 | 41.5 | 21 | 6 | |
| 8171-GF-CS001 | 600.5 | 581.7 | 527 | 365 | 453 | 21 | 18 | 60 | 405 | 22-φ17.5 | 171.45 | 38.85 | 21 | 1 | |
| 8171-GF-DS001 | 600.5 | 581.7 | 527 | 324 | 410 | 22 | 16 | 60 | 364 | 15-φ17.5 | 171.45 | 41.5 | 21 | 1 | |
| 8171-GF-ES001 | 600.5 | 581.7 | 527 | 324 | 410 | 22 | 16 | 60 | 364 | 15-φ17 | 171.45 | 41.5 | 21 | 1 | |
| 8171-GF-FS001 | 600.5 | 581.7 | 527 | 362 | 440 | 21 | 18 | 60 | 171.45 | 38.85 | 21 | 1 | |||
| 8171-GF-GS001 | 650.5 | 635.5 | 581 | 402 | 485 | 21 | 18 | 60 | 440 | 22-φ17 | 171.45 | 44.93 | 23 | 1 | |
| 8171-GF-HS001 | 600.5 | 581.7 | 527 | 330 | 405 | 30 | 29 | 60 | 370 | 30-φ18 | 171.45 | 45.6 | 21 | 6 | |
| 8171-GF-JS001 | 600.5 | 581.7 | 527 | 370 | 458 | 21 | 18 | 60 | 410 | 20-φ21 | 171.45 | 38 | 21 | 1 | |
| 8171-GF-KS001 | 600.5 | 581.7 | 527 | 292 | 372 | 20 | 20 | 60 | 332 | 12-φ17 | 171.45 | 46.02 | 21 | 1 | |
| 8171-GF-LS001 | 600.5 | 581.7 | 527 | 402 | 475 | 30 | 26 | 60 | 440 | 22-φ17.5 | 171.45 | 35.85 | 21 | 6 | |
| 8171-GF-MS001 | 600.5 | 581.7 | 527 | 265 | 330 | 21 | 18 | 60 | 300 | 12-φ15.5 | 171.45 | 48.4 | 21 | 1 | |
| 8171-GF-NS001 | 594 | 581.7 | 530.59 | 324 | 404 | 22.5 | 16 | 61 | 364 | 15-φ18 | 171.45 | 21 | 1 | ||
| 8171-MN-AS001 | 594 | 581.7 | 527.5 | 324 | 405 | 21 | 16 | 58 | 364 | 15-φ17 | 171.45 | 36 | 21 | 1 | |
| 8175-MG-AS001 | 607 | 593.714 | 547.4 | 324 | 410 | 20 | 15 | 42 | 364 | 15-φ18 | 175 | 33.7 | 21 | 7 | 13T |
| 8175-MG-AS001A | 607 | 593.714 | 547.4 | 324 | 410 | 20 | 15 | 42 | 364 | 15-φ18(3-φ18) | 175 | 33.7 | 21 | 7 | |
| 8175-MG-CS001 | 607 | 593.714 | 547.4 | 324 | 410 | 20 | 15 | 42 | 364 | 21-φ18 | 175 | 33.7 | 21 | 7 | |
| 8175-MG-DS001 | 607 | 593.714 | 547.4 | 324 | 410 | 20 | 19 | 42 | 364 | 15-φ18 | 175 | 37.3 | 21 | 7 | |
| 8175-MG-DS001A | 607 | 593.714 | 547.4 | 324 | 410 | 24 | 15 | 42 | 364 | 15-φ16.8 | 175 | 35 | 21 | 7 | |
| 8175-MG-ES001 | 607 | 593.714 | 547.4 | 324 | 410 | 20 | 15 | 42 | 364 | 15-φ16.8 | 175 | 33.7 | 21 | 7 | |
| 8175-MG-FS001 | 607 | 593.714 | 547.4 | 324 | 410 | 20 | 15 | 42 | 364 | 15-φ18 | 175 | 33.7 | 21 | 7 | |
| 8175-MG-GS001 | 607 | 593.714 | 547.4 | 402 | 476 | 7 | 15 | 42 | 440 | 22-φ18(8-φ18) | 175 | 33.7 | 21 | 7 | |
| 8175-MG-JS001 | 607 | 593.714 | 545 | 280 | 340 | 21 | 15 | 42 | 305 | 16-φ18 | 175 | 43.66 | 21 | 7 | |
| 8190-MH-AS001 | 659 | 644.6 | 584.72 | 450 | 532 | 35.5 | 25 | 71 | 490 | 24-φ21 | 190 | 44.3 | 21 | 6 | 20T |
| 8190-MH-BS001 | 659 | 644.6 | 584.72 | 410 | 493 | 35.5 | 25 | 71 | 449 | 26-φ19 | 190 | 42 | 21 | 6 | 20T |
| 8190-MH-DS001 | 659 | 644.6 | 584.72 | 450 | 527 | 36 | 32 | 68 | 490 | 24-φ22 | 190 | 55 | 21 | 6 | 20T |
| 8190-MH-FS001 | 659 | 644.6 | 584.72 | 402 | 480 | 35.5 | 20 | 71 | 440 | 30-φ17.5 | 190 | 56 | 21 | 6 | 20T |
| 8190-MH-GS001 | 659 | 644.6 | 584.72 | 402 | 480 | 30 | 18 | 71 | 440 | 22-φ17.5 | 190 | 55.5 | 21 | 6 | |
| 8190-MH-HS001 | 659 | 644.6 | 584.72 | 370 | 544 | 41.5 | 21 | 71 | 410 | 20-φ21.5 | 190 | 37.4 | 21 | 6 | |
| 8190-MH-JS001 | 659 | 644.6 | 584.72 | 450 | 532 | 35.5 | 20 | 71 | 490 | 24-φ21 | 190 | 37.6 | 21 | 6 | |
| 8190-MH-KS001 | 659 | 644.6 | 584.72 | 450 | 538 | 31.5 | 23 | 71 | 492 | 20-φ21.5 | 190 | 45.5 | 21 | 6 | |
| 8190-MH-LS001 | 659 | 644.6 | 584.72 | 402 | 480 | 30 | 18 | 71 | 440 | 22-φ17.5(8-φ17.5) | 190 | 55 | 21 | 1 | |
| 8190-MH-NS001 | 659 | 644.6 | 584.72 | 420 | 482 | 9 | 26.5 | 71 | 410 | 22-φ17 | 190 | 46 | 21 | 5 | |
| 8190-MK-AS001 | 658.4 | 644.6 | 584.8 | 402 | 510 | 21 | 26 | 68 | 440 | 22-φ17(8-φ17) | 190 | 56 | 21 | 1 | 20T |
| 8190-MK-BS001 | 658.4 | 644.6 | 584.8 | 402 | 510 | 21 | 26 | 68 | 440 | 22-φ17.5(8-φ17.5) | 190 | 56 | 21 | 1 | |
| 8190-MK-DS001 | 658.4 | 644.6 | 584.8 | 402 | 475 | 21 | 26 | 68 | 440 | 22-φ17 | 190 | 56 | 21 | 1 | |
| 8190-MK-ES001 | 660 | 644.6 | 585.6 | 402 | 480 | 17 | 30 | 68 | 440 | 22-φ17.5 | 190 | 21 | 3 | ||
| 8190-MO-AS001 | 658.4 | 644.6 | 584.8 | 402 | 480 | 25 | 18 | 68 | 440 | 22-φ16.5 | 190 | 68 | 21 | 1 | |
| 8203-MP-AS001 | 770 | 753 | 686 | 435 | 538 | 36 | 27 | 80 | 472 | 24-φ22(2-M16) | 203.2 | 8 | 30T | ||
| 8203-MP-BS001 | 770 | 753 | 686 | 450 | 545 | 36 | 27 | 80 | 492 | 26-φ22(2-M16) | 203.2 | 83 | 23 | 8 | 30T |
| 8203-MP-CS001 | 704 | 689.4 | 622 | 450 | 532 | 36 | 27 | 80 | 490 | 24-φ22 | 203.2 | 83 | 21 | 8 | 30T |
| 8203-MP-DS001 | 770 | 753 | 686 | 450 | 545 | 35 | 28 | 80 | 490 | 8x3-φ22(2-M16） | 203.2 | 84 | 23 | 8 | 30T |
| 8203-MP-FS001 | 703.4 | 688.7 | 621.2 | 370 | 454 | 45 | 45 | 90 | 410 | 20-φ22 | 203.2 | 118.9 | 21 | 6 | 30T |
| 8203-MP-GS001 | 703.4 | 688.7 | 621.7 | 450 | 530 | 17 | 28 | 80 | 490 | 24-φ22 | 203.2 | 59.2 | 21 | 8 | 30T |
| 8203-MP-HS001 | 770 | 753 | 686 | 450 | 528 | 17 | 28 | 80 | 490 | 24-φ22 | 203.2 | 83 | 23 | 8 | 30T |
| 8203-MP-JS001 | 771 | 753.2 | 685.663 | 490 | 600 | 25 | 30 | 80 | 535 | 24-φ21 | 203.2 | 77.98 | 23 | 1 | |
| 8203-MP-KS001 | 704 | 688.7 | 622 | 460 | 542 | 36 | 27 | 80 | 500 | 36-φ22 | 203.2 | 83 | 21 | 8 | |
| 8203-MP-LS001 | 770 | 753 | 686 | 402 | 528 | 17 | 28 | 80 | 440 | 22-φ17.5(8-φ17.5) | 203.2 | 90 | 23 | 8 | |
| 8203-MP-MS001 | 770 | 753 | 686 | 450 | 538 | 25 | 30 | 80 | 490 | 26-φ22(2-M16) | 203.2 | 78.1 | 23 | 8 | |
| 8203-MP-NS001 | 770 | 753 | 686 | 370 | 452 | 17 | 27 | 80 | 410 | 20-φ21(2-M16) | 203.2 | 83 | 23 | 8 | |
| 8203-MP-PS001 | 704 | 689.4 | 622 | 460 | 560 | 36 | 27 | 80 | 510 | 24-φ22 | 203.2 | 84 | 21 | 8 | |
| 8216-MA-BS001 | 740 | 732.812 | 665.9 | 435 | 530 | 31 | 25 | 87 | 472 | 24-φ21 | 216 | 91.74 | 21 | 1 | 30T |
| 8216-MA-DS001 | 740 | 732.812 | 665.9 | 450 | 560 | 17.5 | 30 | 87 | 492 | 26-φ21 | 216 | 91 | 21 | 9 | 30T |
| 8216-MA-ES001 | 740 | 732.812 | 665.9 | 435 | 530 | 9 | 27 | 87 | 490 | 32-φ21 | 216 | 91 | 21 | 9 | |
| 8216-MA-ES001A | 740 | 732.812 | 665.9 | 450 | 530 | 9 | 27 | 87 | 490 | 32-φ21 | 216 | 90 | 21 | 9 | |
| 8216-MA-FS001 | 740 | 732.812 | 665.9 | 450 | 530 | 31 | 25 | 87 | 490 | 24-φ22 | 216 | 91.74 | 21 | 1 | |
| 8216-MA-GS001 | 740 | 732.812 | 665.9 | 450 | 560 | 31 | 25 | 87 | 492 | 26-φ21 | 216 | 87.56 | 21 | 1 | |
| 8216-MA-HS001 | 740 | 732.812 | 665.9 | 450 | 532 | 17.5 | 30 | 87 | 490 | 24-φ21 | 216 | 91 | 21 | 9 | |
| 8216-MA-JS001 | 748.4 | 732.8 | 665.3 | 450 | 535 | 6 | 30 | 87 | 492 | 24-φ22 | 216 | 37.6 | 21 | 3 | |
| 8216-MA-LS001 | 740 | 732.8 | 665.9 | 450 | 540 | 27 | 26 | 87 | 490 | 24-φ22 | 216 | 91 | 21 | 1 | |
| 8216-ME-AS001 | 808 | 800.6 | 725.9 | 490 | 600 | 22 | 30 | 90 | 535 | 28-φ21 | 216 | 104.1 | 21 | 9 | 40T |
| 8216-ME-BS001 | 808 | 800.6 | 725.9 | 556 | 660 | 38 | 30 | 90 | 605 | 24-φ24 | 216 | 90 | 23 | 9 | 40T |
| 8216-ME-CS001 | 748.4 | 732.8 | 658.1 | 460 | 564 | 45 | 45 | 90 | 500 | 36-φ20 | 216 | 96.3 | 21 | 6 | 40T |
| 8216-ME-DS001 | 748.4 | 732.8 | 658.1 | 450 | 540 | 37 | 22.5 | 90 | 492 | 26-φ20.5 | 216 | 97.6 | 21 | 8 | 40T |
| 8216-ME-ES001 | 748.4 | 732.8 | 658.1 | 450 | 540 | 27.5 | 22.5 | 90 | 492 | 26-φ21.5 | 216 | 79 | 21 | 8 | |
| 8216-ME-FS001 | 748.2 | 732.8 | 658.1 | 490 | 585 | 34 | 34 | 90 | 535 | 28-φ21 | 216 | 81 | 21 | 1 | |
| 8216-ME-GS001 | 808 | 800.6 | 725.9 | 450 | 540 | 22 | 30 | 90 | 490 | 24-φ21.5(4-φ21.5) | 216 | 104.1 | 23 | 9 | |
| 8216-ME-HS001 | 748.4 | 732.8 | 658.1 | 450 | 550 | 45 | 45 | 90 | 500 | 32-φ26 | 216 | 98.9 | 21 | 6 | |
| 8216-ME-JS001 | 748.4 | 732.8 | 658.1 | 430 | 540 | 45 | 45 | 90 | 480 | 20-φ26 | 216 | 97 | 21 | 6 | |
| 8216-ME-KS001 | 815 | 800.6 | 725.8 | 570 | 670 | 34 | 32 | 90 | 620 | 24-φ26.5 | 216 | 83 | 23 | 9 | |
| 8216-ME-LS001 | 748.4 | 732.8 | 658.1 | 460 | 560 | 40 | 27 | 90 | 510 | 24-φ22 | 216 | 75 | 21 | 9 | |
| 8216-ME-MS001 | 808 | 800.6 | 725.9 | 545 | 650 | 22 | 30 | 90 | 592 | 30-φ21 | 216 | 95 | 23 | 9 | |
| 8216-ME-NS001 | 808 | 800.6 | 725.9 | 460 | 570 | 22 | 30 | 90 | 510 | 24-φ21 | 216 | 116 | 23 | 9 | |
| 8216-ME-PS001 | 819.34 | 800.23 | 725.23 | 460 | 564 | 45 | 45 | 90 | 500 | 36-φ20 | 216 | 136.4 | 23 | 6 | |
| 8216-MR-AS001 | 748.09 | 732.47 | 662.47 | 450 | 540 | 28 | 31 | 90 | 492 | 26-φ20.5 | 215.9 | 96.21 | 21 | 1 | |
| 8216-MR-BS001 | 748.09 | 732.47 | 662.47 | 450 | 600 | 22 | 29 | 90 | 490 | 28-φ21 | 215.9 | 86 | 21 | 9 | |
| 8228-MD-AS001 | 860 | 847.304 | 767.709 | 585 | 690 | 38 | 28 | 104 | 636 | 26-φ26 | 228.6 | 88.36 | 23 | 1 | |
| 8228-MD-BS001 | 860 | 847.3 | 767.9 | 576 | 675 | 55 | 24 | 104 | 626 | 20-φ26 | 228.6 | 88.2 | 23 | 9 | |
| 8228-MD-CS001 | 935 | 919.217 | 839.8 | 570 | 690 | 38 | 28 | 104 | 620 | 42-φ32 | 228.6 | 126.2 | 25 | 1 | |
| 8228-MD-DS001 | 860 | 847.3 | 767.709 | 535 | 652 | 38 | 28 | 104 | 600 | 30-φ29 | 228.6 | 99.1 | 23 | 9 | |
| 8228-MD-ES001 | 935 | 919.217 | 839.8 | 570 | 690 | 38 | 28 | 104 | 620 | 42-φ32 | 228.6 | 126.2 | 25 | 1 | |
| 8228-ME-BS001 | 792 | 775.56 | 703.76 | 556 | 652 | 35 | 34 | 90 | 605 | 24-φ24 | 228.6 | 74 | 21 | 9 | |
| 8228-ME-CS001 | 867.54 | 847.3 | 775.16 | 570 | 672 | 35 | 34 | 90 | 620 | 24-φ26 | 228.6 | 74 | 23 | 9 | |
| 8228-ME-CS001A | 867.54 | 847.3 | 775.16 | 570 | 672 | 21 | 34 | 90 | 620 | 24-φ26 | 228.6 | 85 | 23 | 9 | |
| 8228-ME-DS001 | 783 | 775.559 | 703 | 460 | 560 | 17 | 36 | 90 | 510 | 24-φ26 | 228.6 | 107.3 | 21 | 9 | |
| 8228-ME-ES001 | 783 | 775.559 | 703 | 460 | 560 | 12 | 36 | 90 | 510 | 24-φ26 | 228.6 | 106 | 21 | 9 | |
| 8228-ME-GS001 | 867.54 | 847.3 | 775.16 | 460 | 565 | 35 | 34 | 90 | 510 | 24-φ22 | 228.6 | 125 | 23 | 9 | |
| 8228-ME-JS001 | 867.54 | 847.3 | 775.16 | 408 | 510 | 33 | 29 | 90 | 460 | 24-φ26 | 228.6 | 106 | 23 | 1 | |
| 8228-ME-KS001 | 867.54 | 847.3 | 775.16 | 490 | 585 | 35 | 34 | 90 | 535 | 28-φ22 | 228.6 | 129 | 23 | 9 | |
| 8228-ME-LS001 | 783 | 775.559 | 703 | 408 | 510 | 31 | 28 | 90 | 460 | 24-φ26 | 228.6 | 130 | 21 | 1 | |
| 8260-MC-AS001 | 988 | 965 | 878.7 | 535 | 657 | 28 | 32 | 100 | 600 | 30-φ26 | 260.35 | 209.5 | 23 | 4 | 80T |
| 8260-MC-BS001 | 988 | 965 | 878.7 | 570 | 676 | 28 | 32 | 100 | 620 | 44-φ26 | 260.35 | 209.5 | 23 | 4 | |
| 8260-MC-CS001 | 988 | 965 | 878.7 | 585 | 690 | 28 | 32 | 100 | 636 | 26-φ26 | 260.35 | 168 | 23 | 4 | |
| 8260-MC-DS001 | 988 | 965 | 878.7 | 600 | 725 | 28 | 44 | 100 | 670 | 30-φ29 | 260.35 | 187 | 23 | 1 | |
| 8260-MC-ES001 | 900 | 883.27 | 796.87 | 450 | 570 | 57 | 45 | 114 | 500 | 30-φ26 | 260.35 | 142 | 21 | 6 | |
| 8260-MC-KS001 | 988 | 965 | 878.7 | 576 | 673 | 25 | 42 | 114 | 626 | 30-φ26 | 260.35 | 197 | 23 | 4 |
